Using the MV Viewer

Since MV Kit Creator™ is primarily concerned with CREATING .mv0 files, viewing the innards of a .mv0 is an auxiliary function. Nevertheless, the MV Viewer is very handy on viewing a .mv0 file and seeing exactly what it's capable of.

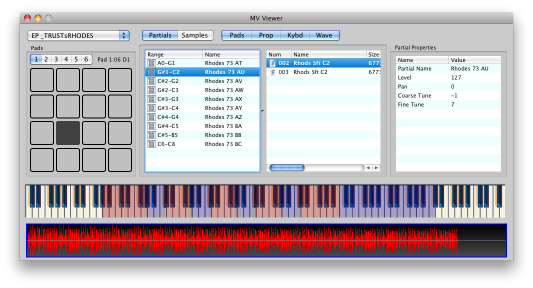

The MV Viewer has four areas; the Pad Area, the Data Area, the Keyboard Area, and the Waveform Area. Each can be displayed or hidden.

Basically when you select a .mv0 file, you see the Partials listed in the Path, and when you select the Partial you see the Samples listed in that partial. You see the key ranges for each Partial. You can select the Partial by clicking on one of the pads; and like the MV, it has 6 Pad Banks.

Pad Area
Click on one fo these to see it's contents

Data Area
These are the lists for the Partials, Samples, and other Data.

Keyboard Area
This shows in color what keyranges are taken up. Click on any note and the proper Partial will be selected in the list.

Waveform Area
When you select a Sample, the waveform shows up here.
